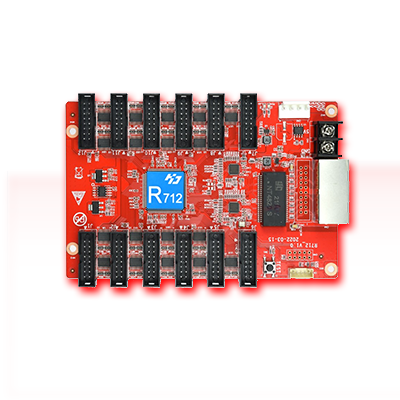

LDMR1201 Huidu R-712 Receiving Card
৳ 2,450.00
Key Features
- Model: HD-R712
- Control System: Supports both synchronous and asynchronous systems
- Integrated HUB: 12×HUB75E interfaces onboard
- Maximum Loading Capacity: Up to 131,072 pixels
- Recommended Loading:
- Conventional chip: 128×1024 pixels
- PWM chip: 256×1024 pixels
- Scanning Support: Static to 1/128 scan
- Data Group Features: Supports data group exchange and offset settings
- Multi-card Cascade: Supports arbitrary order cascading
- Compatibility: Works with all conventional and most PWM IC modulesHdwell+9led-card.com+9QAOMANE LED MASTER+9Hdwell+9LED Controller Store+9led-card.com+9LED Controller Store+5LedInCloud+5Eager-LED+5
LDMR1201 Huidu R-712 Receiving...
৳ 2,450.00
Need Help?
(+123) 456 555 789
(+123) 666 202 888
(+123) 666 202 888
| Category | Details |
| Model | HD-R712 |
| Control System | Synchronous and Asynchronous |
| Integrated HUB Ports | 12×HUB75E |
| Maximum Loading Capacity | 131,072 pixels |
| Recommended Loading | Conventional chip: 128×1024 pixels; PWM chip: 256×1024 pixels |
| Scanning Support | Static to 1/128 scan |
| Data Group Features | Supports data group exchange and offset settings |
| Multi-card Cascade | Supports arbitrary order cascading |
| Module Compatibility | All conventional and most PWM IC modules |
| Dimensions | 142mm × 91.2mm × 1.5mm |
| Weight | Approximately 95g |
| Power Supply | DC 5V |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | CE, RoHS |
Description
The Huidu HD-R712 is a versatile LED receiving card designed for seamless integration into both synchronous and asynchronous control systems. With 12 integrated HUB75E interfaces, it eliminates the need for additional adapter boards, simplifying installation and reducing costs.Eager-LED+8LedInCloud+8Colorlitled+8 Its robust design supports a wide range of scanning methods, from static to 1/128 scan, making it compatible with various LED display modules. The card’s ability to handle up to 131,072 pixels ensures high-resolution display capabilities, suitable for large-scale installations.LED Controller Store+6LedInCloud+6Colorlitled+6 Advanced features like data group exchange, offset settings, and support for arbitrary order multi-card cascading provide flexibility in complex display configurations. Whether you’re setting up a new display or upgrading an existing one, the HD-R712 offers reliability and performance.
